Fusion Galvo

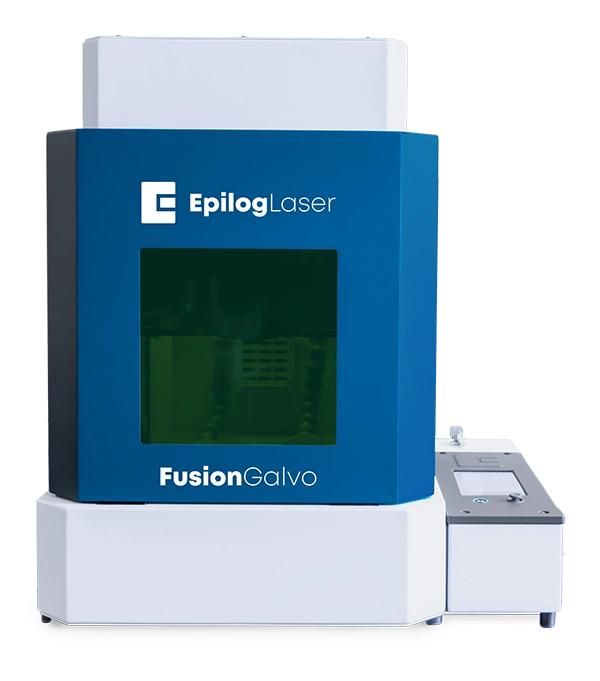

Fusion Galvo G100
Metal Marking Machine

The Fusion Galvo by Epilog Laser combines fast engraving of metals with quick and efficient project setup. This innovative laser machine produces a variety of marks on metal, including deep engraving, polished white marks, and deep black annealed etching. Project setup is fast and easy using Epilog’s Laser Dashboard and artwork placement is exceptionally precise thanks to the IRIS™ camera system. The Fusion Galvo features an exceptionally user-friendly interface and uses high-quality parts and components, giving you unbeatable metal etching results.

Technical Parameters

Features

Machine Enhancements Designed to Increase Productivity

The Fusion Galvo engraving machine from Epilog Laser combines leading-edge galvo technology and our latest features that allow manufacturers to quickly and easily engrave metal parts and components.

Large Marking Field

Etch on up to a 6” x 6” (152.4 x 152.4 mm) engraving area or change lenses for the 4” x 4” (101.6 x 101.6 mm) marking area.

Two Lenses Included

The ability to switch to a larger or smaller marking field isn’t a pricey add-on. The Fusion Galvo includes both an F163 and F254 lens, giving you more options to achieve perfect engraving results on your materials.

Automated Mechanical Door

The Fusion Galvo features a mechanical door that automatically lowers when starting a job and rises when it is complete, increasing your throughput on projects.

Software Compatibility

You aren’t forced to use a proprietary design software program. Design your project in AutoCAD, Bartender, Illustrator, CorelDRAW, and many other packages and print your completed design to Epilog’s Laser Dashboard.

Design While the Laser Is Operating

As you wait for your job to complete at the laser, continue to set up more projects in the Laser Dashboard. Each job you send to the laser will appear in order on the display panel.

IRIS™ Camera Positioning

An overhead camera system provides a real-time picture of the working area for accurate artwork placement. Drag and drop your graphics on screen for quick processing.

Job Trace

Just press a button and you can trace your job at the laser to see an outline of where your project is going to engrave.

Touch Screen at the Laser

Select between jobs, focus the laser, trace your marking area, and rerun jobs at the touch of a button from the easy-to-use touch screen interface at the laser.

Network Your Laser Across Your Business

The Fusion Galvo features built-in Ethernet, USB, and Wireless options for networking your laser.

Multiple Files at the Galvo

Ready to run your next job? You can send multiple jobs to the laser and choose which to run from the display panel on the Fusion Galvo.

Memory in the Machine

Improve job management and data integrity with 1GB of RAM. Move between jobs at the control panel, and even save your most run jobs right at the laser.

Red Dot and Auto Focus

Choose to focus your material by lining up the Red Dot Pointer, or type in your material thickness to automatically focus the laser for your materials.

Integrated Exhaust Controller

An integrated exhaust controller will automatically cycle on and off many popular exhaust systems.

An American Company

Since 1988 we have been designing, engineering, and supporting our laser machines in Golden, Colorado.

PrintAPI (Process & Workflow Integration)

Designed as a flexible library, PrintAPI empowers developers to seamlessly create and send print jobs to Epilog Laser machines directly from their own software environments.

Epilog Pulse (Mac Compatible)

The Pulse application is a multi-platform print application that can be used with Mac, Linux, other non-Windows operating systems, and Windows.

Specification

	Fusion Galvo G100
Maximum Engraving Speed:	—
Work Area:	Max 6″ x 6″ (152 x 152mm)
Material Thickness:	F163: 10″ (254 mm) F254: 6″ (152 mm)
Laser Source Wattages:	Fiber: 30 watt MOPA, 60 watt MOPA, or 100 watt MOPA
Laser Tube Types:	Fiber: Air-cooled, 1064nm
IRIS™ Camera System:	2 overhead
Acceleration:	—
Motion System:	—
Status Light:	—
Included Lenses:	F163 and F254
Optional Lenses:	N/A
Included Table:	Breadboard table with tapped holes on 25 mm centers
Max Table Weight:	100 lbs (46 kg)
Drop Down Door:	Mechanized front door
Air Compressor:	—
Size (WxDxH):	28″ x 23″ x 31″ (door closed) 37″ height (door open) (711 mm x 584 mm x 787 mm / 940 mm)
Weight:	131 lbs (59.5 kg)
Electrical:	Voltage: Auto-switching 100-120, Amp draw-MAX: 13A Voltage: Auto-switching 220-240, Amp draw-MAX: 6.5A 50 or 60 Hz, single phase
Ventilation:	350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4″ (102 mm) diameter.
Class:	Class 2 Laser Product – 1 mW cW MAXIMUM 600-700nm

Accessories

Accessory

Galvo Rotary Attachment
Ring Head Jaw and 3-Jaw Chuck

The Rotary Attachment option for the Fusion Galvo G100 allows you to engrave cylindrical items like tumblers, rings, and tubes quickly and easily. The 3-Jaw-Chuck design of the rotary allows for maximum precision on a variety of common cylindrical products.
