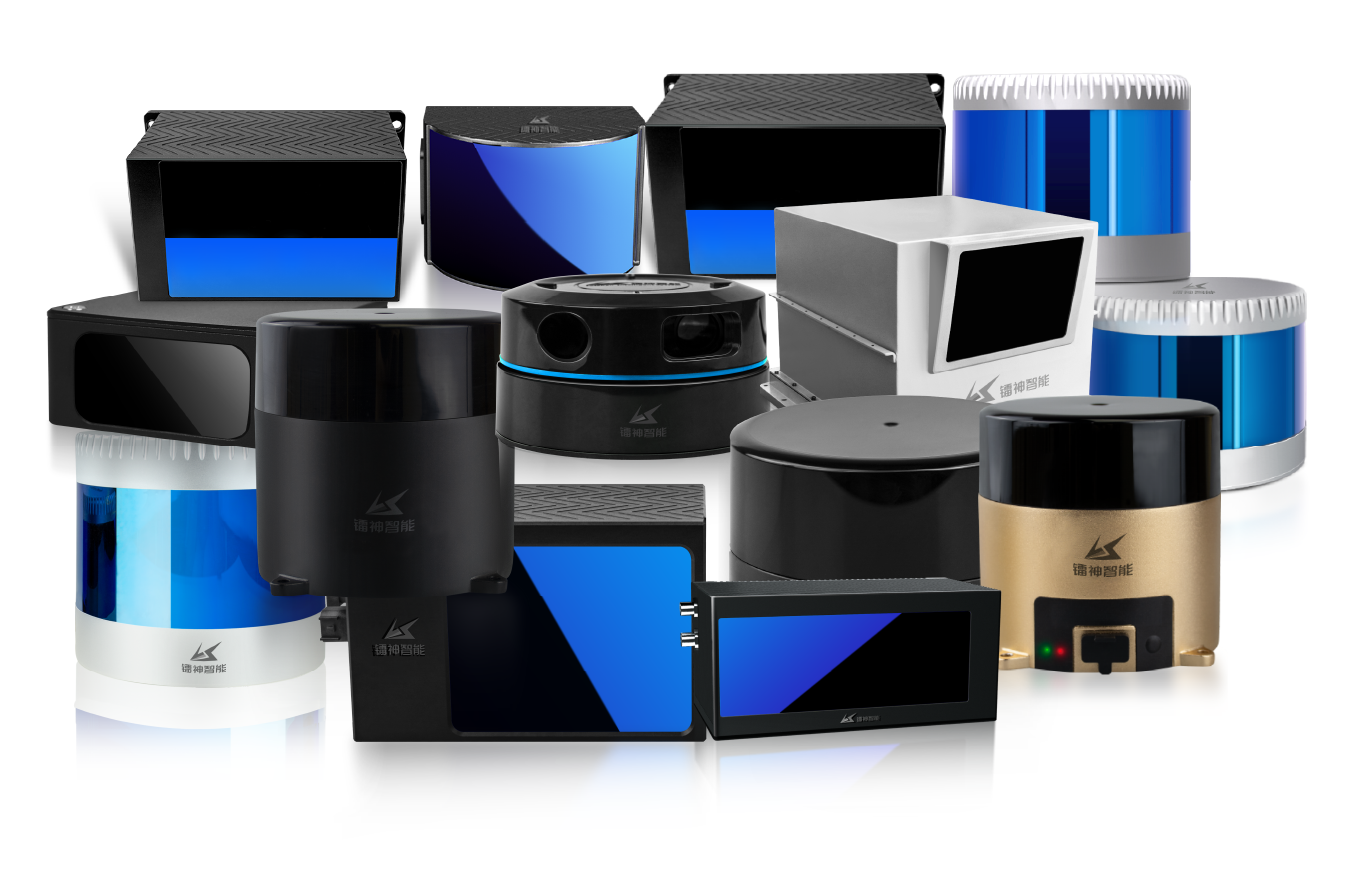

Our Range of LS LiDAR Products

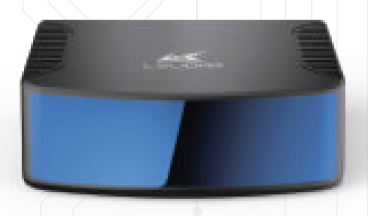

CX128S1
Auto-Grade Hybrid-Solid State LiDAR
LS LiDAR’s series of Auto-Grade, standard, compact LiDAR sensor packages includes the CX128S1. A cutting-edge, 128-line hybrid-solid state LiDAR system, the CX128S1 offers high reliability, high stability, and usability in a variety of applications, including autonomous vehicles as well as robotics.
Spec Sheet
Model |
CX128S1 |
---|---|
Wavelength | 905nm |
Laser Class |
Class I (IEC-60825) |
Channels | 128 |
Detection Method | TOF |
Detection Range |
180m@10% |
Range Accuracy |
±3cm |
Horizontal FOV | p |
Vertical FOV | p |
Horizontal Angular Resolution | p |
Vertical Angular Resolution | p |
FPS | 10 Hz/ 20 Hz |
Data Point Generation Rate (Points/Sec) |
1,560,000 |
Communication Interface | Automotive Ethernet |
Input Voltage | 9V ~ 36V DC |
Power Consumption | 18W |
AUTOSAR | Supports (A), Does Not Support (I) |
IP Grade | IP6k9k |
Operating Temperature |
-40℃~85℃ |
Weight | 800g |
Dimensions (LxWxH) | 140 x 100 x 45 mm |

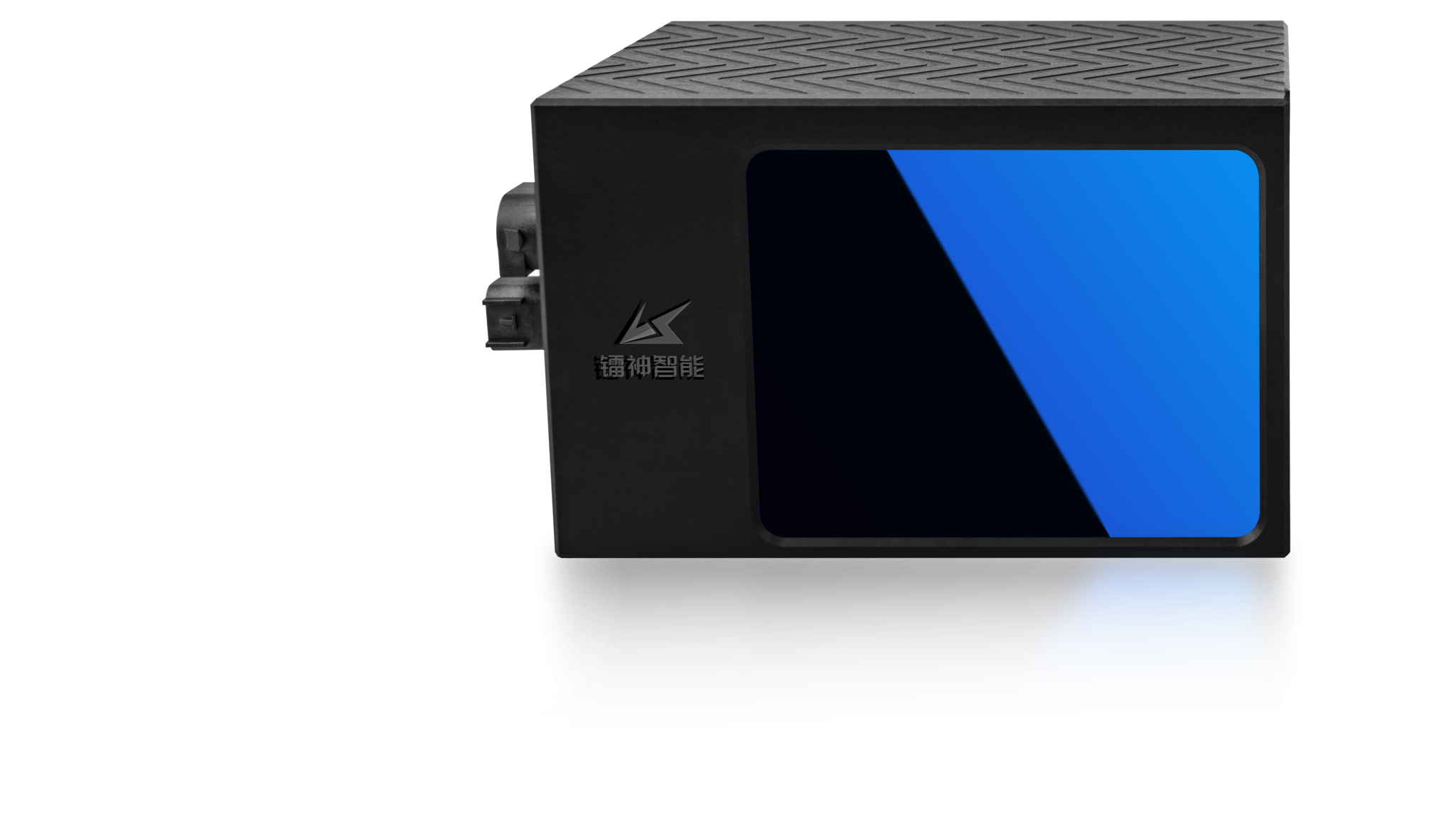

CH128 Series
hybrid Solid-state liDAR system
LS LiDAR’s series of standard, compact LiDAR sensor packages includes the CH128 series. A flagship, 128-line hybrid-solid state LiDAR system, the CH128 series offers high reliability, high stability, and usability in a variety of applications, including autonomous vehicles as well as robotics.
Spec Sheet
Model |
CB64S1 |
CH64W |
---|---|---|
Wavelength | 905nm | 905nm |
Laser Class | Class 1 (IEC-60825) | Class 1 (IEC-60825) |
Channels | 64 | 64 |
Detection Method | TOF | TOF |
Detection Range | 100m (45m@10%) | 100m (45m@10%) |
Range Accuracy |
±3cm |
±3cm |
Horizontal FOV |
180° |
180° |
Vertical FOV |
40° (-25°~15°) |
40° (-25°~15°) |
Horizontal Angular Resolution |
0.12°.10Hz / 0.16°.10Hz / 0.24°.10Hz / 0.36°.10Hz |
0.12°.10Hz / 0.16°.10Hz / 0.24°.10Hz / 0.36°.10Hz |
Vertical Angular Resolution |
0.63° |
0.63° |
FPS | 10Hz, 20Hz | 10Hz, 20Hz |
Data Point Generation Rate (Points/s) | 1,010,000 | 760,000 | 500,000 | 330,000 | 1,010,000 | 760,000 | 500,000 | 330,000 |
Communication Interface | Automotive Ethernet | Automotive Ethernet |
Input Voltage | 9V-36V DC | 9V-36V DC |
Power Consumption | 15W | 15W |
Anti-Interference | Laser Code | Laser Code |
AUTOSAR | Supports (A), Does not Support (I) | Supports (A), Does not Support (I) |
IP Grade | IP6K9K | IP6K9K |
Operating Temperature |
-40℃~85℃ |
-40℃~85℃ |
Vibration Test | 5HZ-2000HZ, 3G RMS | 5HZ-2000Hz, 3G rms |
Shock Test |
500m/sec²,Lasting for 11ms |
500m/sec²,Lasting for 11ms |
Weight | 1kg | 1kg |
Dimensions (LxWxH) | 116 x 90 x 76 mm | 116 x 90 x 76 mm |

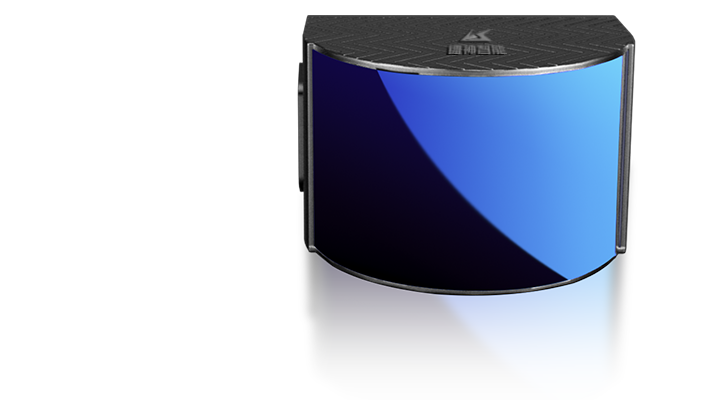

CH64W/CB64S1
Wide FOV Hybrid-Solid state liDAR system
LS LiDAR’s series of Auto-Grade, standard, compact LiDAR sensor packages includes the CH64W. A wide field of view, 64-line hybrid-solid state LiDAR system, the CH64W offers high reliability, high stability, and usability in a variety of applications, including autonomous vehicles as well as robotics.
Spec Sheet
Model |
CB64S1 |
CH64W |
---|---|---|
Wavelength | 905nm | 905nm |
Laser Class | Class 1 (IEC-60825) | Class 1 (IEC-60825) |
Channels | 64 | 64 |
Detection Method | TOF | TOF |
Detection Range | 100m (45m@10%) | 100m (45m@10%) |
Range Accuracy |
±3cm |
±3cm |
Horizontal FOV |
180° |
180° |
Vertical FOV |
40° (-25°~15°) |
40° (-25°~15°) |
Horizontal Angular Resolution |
0.12°.10Hz / 0.16°.10Hz / 0.24°.10Hz / 0.36°.10Hz |
0.12°.10Hz / 0.16°.10Hz / 0.24°.10Hz / 0.36°.10Hz |
Vertical Angular Resolution |
0.63° |
0.63° |
FPS | 10Hz, 20Hz | 10Hz, 20Hz |
Data Point Generation Rate (Points/s) | 1,010,000 | 760,000 | 500,000 | 330,000 | 1,010,000 | 760,000 | 500,000 | 330,000 |
Communication Interface | Automotive Ethernet | Automotive Ethernet |
Input Voltage | 9V-36V DC | 9V-36V DC |
Power Consumption | 15W | 15W |
Anti-Interference | Laser Code | Laser Code |
AUTOSAR | Supports (A), Does not Support (I) | Supports (A), Does not Support (I) |
IP Grade | IP6K9K | IP6K9K |
Operating Temperature |
-40℃~85℃ |
-40℃~85℃ |
Vibration Test | 5HZ-2000HZ, 3G RMS | 5HZ-2000Hz, 3G rms |
Shock Test |
500m/sec²,Lasting for 11ms |
500m/sec²,Lasting for 11ms |
Weight | 1kg | 1kg |
Dimensions (LxWxH) | 116 x 90 x 76 mm | 116 x 90 x 76 mm |

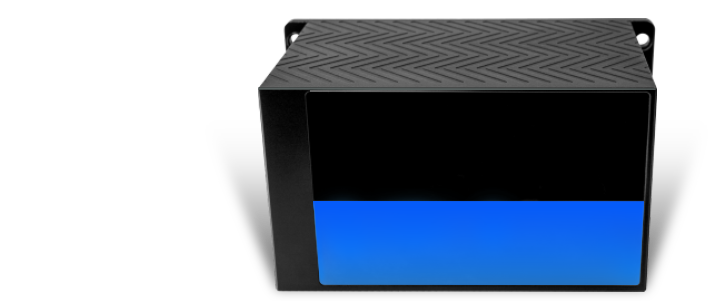

CH32/16
Multipurpose Hybrid-Solid state Lidar
LS LiDAR’s series of Auto-Grade, standard, compact LiDAR sensor packages includes the CH32/16. A high-end, yet cost-effective 32/16-line hybrid-solid state LiDAR system, the CH32/16 offers high reliability, high stability, and usability in a variety of applications, including autonomous vehicles as well as robotics.
Spec Sheet

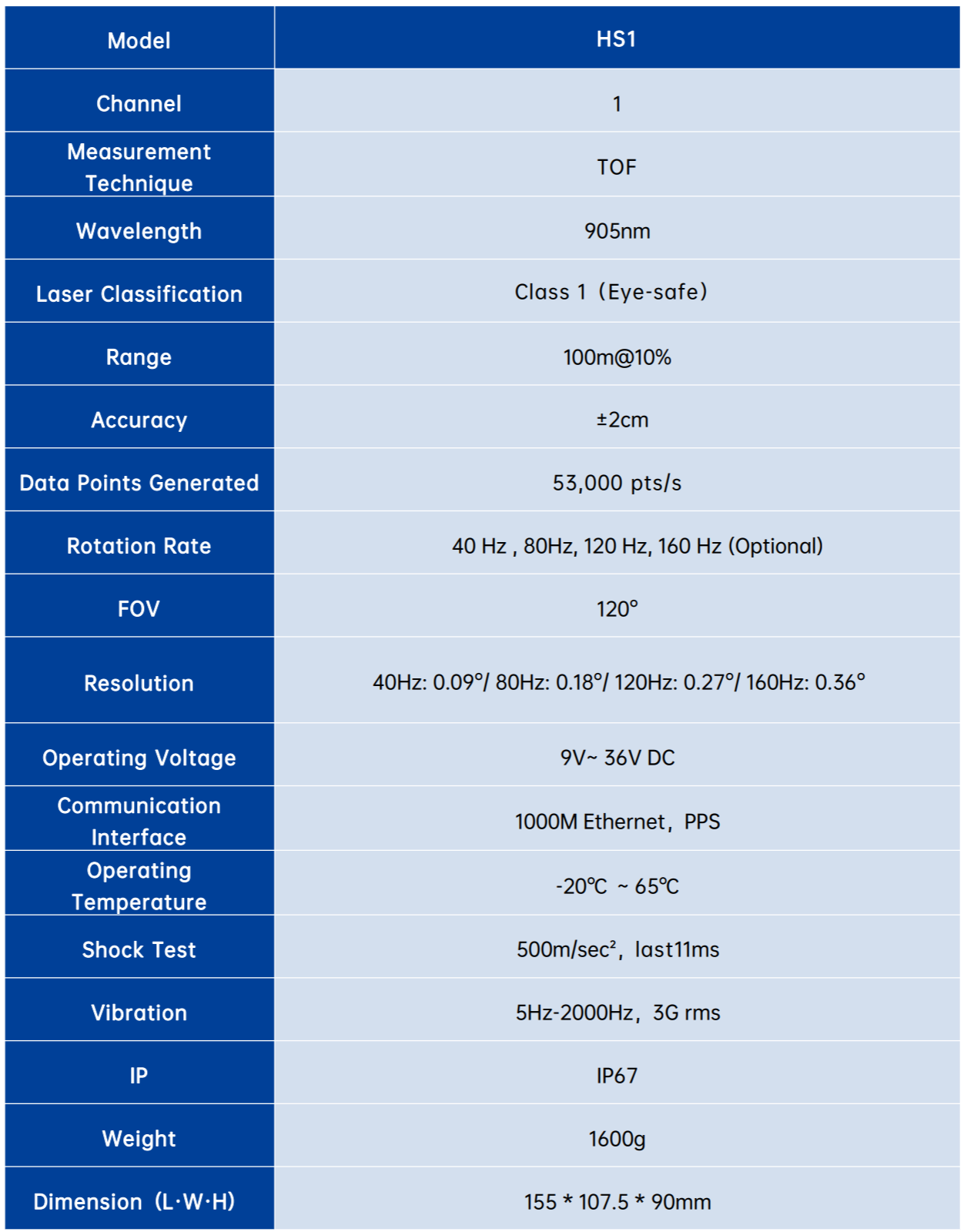

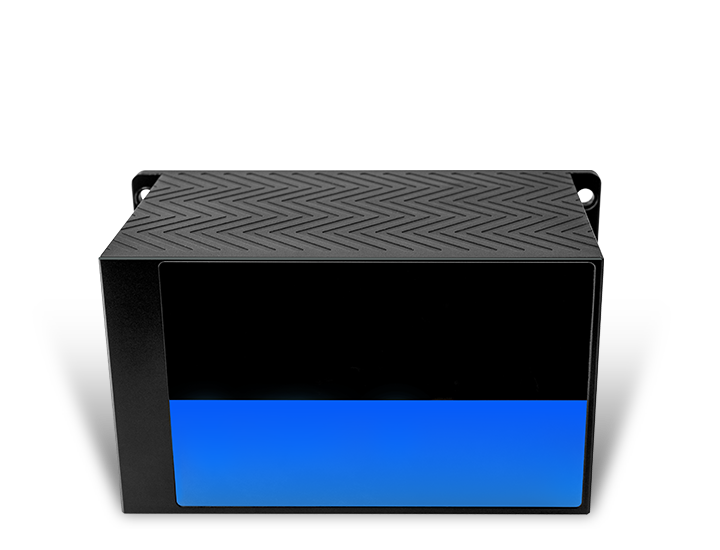

HS Series
Fast Scanning LiDAR System
The HS Series is a high-speed scanning LiDAR system and is a high-quality sensor with a measurement range of up to 100m and a distance accuracy of +/- 2cm. The 160Hz high scanning frequency of the HS series can easily sense fast-moving objects, and accurately capture vehicle contour information.
