1900 Series
Industrial Laser Welding System

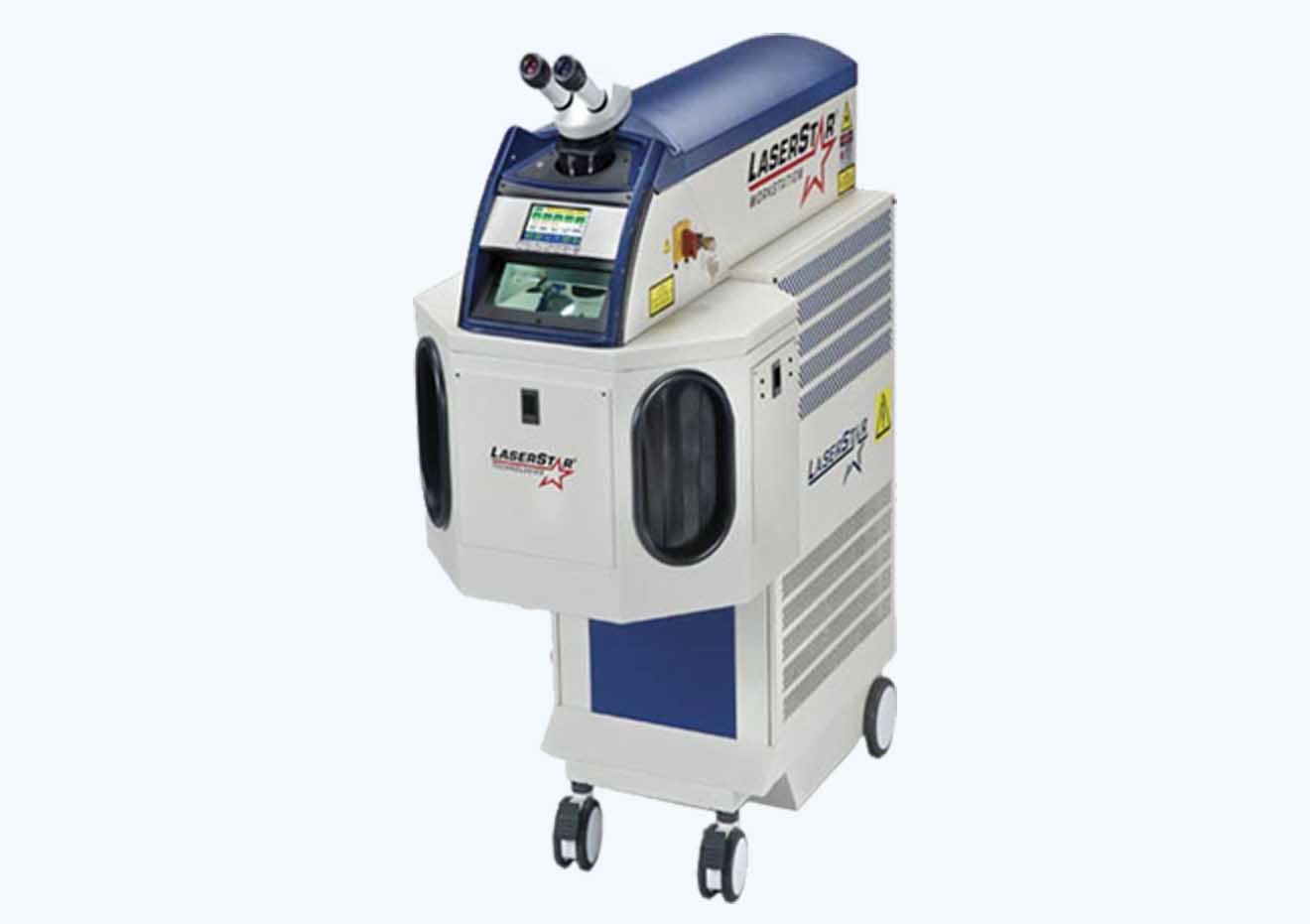

1900 Series Seam Welding Machine
IDI Laser’s 1900 Series LaserStar Industrial Laser Welding Workstations are ideal for a wide range of complex alloys and applications including:
- Medical Device Components
- Spot Welding
- Seam Welding
- Micro Welding
- Mold Repair Welding
- Battery Welding
- Computer Components
- Aerospace and Electronics
- Automotive and Micro Components
Technical Parameters
- Pulse Performance Profile Technology
- Soft-Touch Technology
- Multiple Viewing Systems
- Custom Color Options
- Digital Messaging Display
- Extension Accessories
- Large Viewing Window
- Removable Chamber with Three Access Panels
- Interior Chamber Design
- Automation Opportunities
- Side Entry Service Panel
| System Platform | Pedestal |
| Welding Chamber Safety Certification | Class 1 |
| iWeld Lasing System | Class 4 |
| Wavelength | 1064nm |
| Pulse Energy | 0,1 – 150 Joules |
| Maximum Peak Power | 10.0 kW |
| Internal Power Supply | 400 Volt |
| Average Power | 60 Watts / 80 Watts / 100 Watts |
| Pulse Length | 0,1 – 50 Milli-seconds |
| Pulse Frequency | 0,5 – 20 Hz |
| Burst / Speed Welding | Energy Dependent (Max 100W) |
| Beam Diameter1 | 0,05mm – 2,00mm |
| Cooling System | Internal Water-To-Air |
| Supply Circuit | 120V (± 10%), 50/60Hz 15 Amp, Single Phase 208V (± 5%), 60Hz 20 Amp, Single Phase 230V (± 10%), 50/60Hz 20 Amp, Single Phase |
| Binocular Microscope | 15x (optional 25x, 40x) |
| Lynx Stereo Microscope | Optional |
| Chamber Illumination System | LED Natural Lighting (Quad) |
| EZ-LINK™ Software | Exclusive Integrated Feature |
| Soft-Touch™ Resonator Technology | Optional |
| Pulse Performance Profile Technology2 | Exclusive Integrated Feature |
| Automatic Sleep Mode | Exclusive Integrated Software |
| Parameter Adjustment Features | External Touchscreen Internal Chamber Joystick |
| Programming Memory | 79 Text Cells |
| Language Display Options3 (Additional Languages Available Upon Request) | Yes |
| Program Application Settings | Available Upon Request |
| Preventative Maintenance Alert Software | Yes |
| Motorized Beam Expander | Yes (multiple configurations available) |
| Motion Device Compatible | Yes |
| Shield Gas Supply | Integrated “Soft Flow” Nozzle |
| Inert Gas Welding Chamber Adjust Valve | Dual – Integrated |
| Automation Chamber Dimensions (Custom Sizes Available) | 20”L x 15”W x 14”H 527mm x 398mm x 355mm |
