Fusion Pro
Fusion Pro
Industrial Series – 24, 36 & 48
Featuring up to 165 IPS (4.2 m/s) engraving speeds, 5g acceleration, and a variety of wattage configurations, the easy to use Fusion Pro Laser Series from Epilog can help you improve your business laser workflow, productivity and expand your customer base with more product offerings.
Comprised of the Fusion Pro 24, 36, and 48, all the machines in the Pro Series feature Epilog’s revolutionary IRIS™ Camera System with Positioning and Registration cutting features gives laser operators a live-preview of the engraving table so they can quickly and accurately position their artwork on even the most uniquely shaped items.
Epilog’s Fusion Pro lasers are a valuable investment for businesses needing to increase productivity, versatility, and precision in their production and industrial application environments.
The Fusion Pro’s 165 IPS (4.2 m/s) engraving speed and 5G acceleration combine to provide the fastest engraving in the industry.
The Epilog Fusion Pro 48 processes larger materials, multiple parts in one run, or oversized items without repositioning—boosting productivity in less time.
Deliver the flawless results your customers expect on every piece.
Built for 24/7 performance in industrial environments. Or even your home.
| Fusion Pro 24 | Fusion Pro 36 | Fusion Pro 48 | |
|---|---|---|---|
| Work Area | 24” x 24” x 9″ (610 x 610 x 228 mm) |
36” x 24” x 9″ (914 x 610 x 228 mm) |
48” x 36” x 12.25″ (1219 x 914 x 311 mm) |
| CO2 | 60W, 80W, 100W | 60W, 80W, 100W, 120W, 200W | 80W, 100W, 120W, 200W |
| Dual | 60W CO2 and 30W Fiber, 80W CO2 and 60W Fiber | 80W CO2 and 30W Fiber, 100W CO2 and 60W Fiber | 100W CO2 and 60W Fiber, 120W CO2 and 60W Fiber |
| IRIS™ Cameras: 2 overhead + registration | |||
Benefits of Epilog’s Fusion Pro Laser System
The Fusion Pro laser engraving and cutting machines from Epilog are our top-of-the-line laser systems and combine a large work area with the latest technological features, including:
Highest-Speed Engraving Over Largest Work Area
The Fusion Pro’s 165 IPS engraving speed and 5G acceleration combine to provide the fastest engraving in the industry.
IRIS™ Camera Positioning
Overhead cameras provide an accurate picture of the working area for accurate artwork placement. Drag and drop your artwork on screen for the fastest work processing.
Touch Screen at the Laser
Select between jobs, auto focus the laser, and rerun jobs at the touch of a button from the easy-to-use touch screen interface right at the laser.
Engineered and Manufactured in the USA
Proudly designed, engineered, and manufactured in our Golden, CO headquarters at the base of the Rocky Mountains.
Network Your Laser Across Your Business
The Fusion Pro features built-in Ethernet and USB options for networking your laser.
SAFEGUARD™ Features
Keep the mechanics of your laser machine cleaner than ever before with side enclosures, a fully covered x-axis assembly, and covered lens assembly.
Air Assist and Compressor
The air assist removes heat and combustible gases from the cutting surface for a cleaner cut. A built-in air compressor provides air directly to the work surface.
Split Table
On the Fusion Pro 48 mix and match your table across the bed with optional slat and gridded cutting tables.
Radiance™ Beam Enhancing Optics
No additional, expensive lens package needed for the highest resolution engraving across the entire table.
CO2 Waveguide Laser Tubes by Epilog
All-metal tube design provides higher beam quality and longer life with low recharge costs.
1 GB Memory in the Machine
Improve job management and data integrity with 1GB of RAM in both Fusion Pro systems. Save your most run jobs right at the laser.
Long-Life Steel Bearing
A dual block design provides the most rigidity and reduced vibration without the inevitable wobble and replacement of plastic bearings.
| Fusion Pro 24 | Fusion Pro 36 | Fusion Pro 48 | |
|---|---|---|---|
| Maximum Engraving Speed | 4200 mm/s (165 IPS) | 4200 mm/s (165 IPS) | 4200 mm/s (165 IPS) |
| Work Area | 24″ x 24″ (610 x 610 mm) |
36″ x 24″ (914 x 610 mm) |
48″ x 36″ (1219 x 914 mm) |
| Material Thickness | 9″ (228 mm) | 9″ (228 mm) | 12.25″ (311 mm) |
| Laser Source Wattages | CO2: 60, 80, or 100 watts Dual Source: 60W CO2 & 30W Fiber or 80W CO2 & 60W Fiber |
CO2: 60, 80, 100, 120, or 200 watts Dual Source: 80W CO2 & 30W Fiber or 100W CO2 & 60W Fiber |
CO2: 80, 100, 120, or 200 watts Dual Source: 100W CO2 & 60W Fiber or 120W CO2 & 60W Fiber |
| Laser Tube Types | CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers Fiber (Dual Source Only): Air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1 |
CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers Fiber (Dual Source Only): Air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1 |
CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers Fiber (Dual Source Only): Air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1 |
| IRIS™ Camera System | 2 overhead + registration | 2 overhead + registration | 2 overhead + registration |
| Acceleration | 5G | 5G | 5G |
| Motion System | Brushless DC Servo Motors | Brushless DC Servo Motors | Brushless DC Servo Motors |
| Status Light | Included | Included | – |
| Included Lenses | 2″ CO2, 3″ Fiber & Dual | 2″ CO2, 3″ Fiber & Dual | 2″ CO2, 3″ Fiber & Dual |
| Optional Lenses | 1.5″ or 4″ CO2 | 1.5″ or 4″ CO2 | 4″ CO2 |
| Included Table | CO2: Grid Cutting Table Fiber/Dual: Task Plate Table |
CO2: Grid Cutting Table Dual: Task Plate Table |
CO2/Dual: Task Plate Table |
| Max Table Weight | Static: Vector Grid, 60 lbs (27.2 kg) Static: Task Plate, 90 lbs (40.8 kg) Lifting: 60 lbs (27.2 kg) |
Static: Vector Grid, 60 lbs (27.2 kg) Static: Task Plate, 90 lbs (40.8 kg) Lifting: 60 lbs (27.2 kg) |
Static: Vector, 85 lbs (38.6 kg) Static: Task Plate, 150 lbs (68 kg) Lifting: 85 lbs (38.6 kg) |
| Drop Down Door | Included | Included | Included |
| Air Compressor | Not included | Not included | Not included |
| Size (W x D x H) | 41.52″ x 32.81″ x 40.54″ (1055 x 834 x 1029 mm) |
53.52″ x 32.81″ x 40.54″ (1359 x 834 x 1029 mm) |
70.6″ x 51.3″ x 42.75″ (1794 x 1304 x 1086 mm) Pedestal removed: 34″ H (863 mm) |
| Weight | 240 lbs (108 kg) | 275 lbs (124 kg) | 650 lbs (295 kg) |
| Electrical | 60-80 Watt Machines: • Auto-switching 110v-240v • 13 Amp Draw (110/120v) • 6.5 Amp Draw (220/240v) • 15 Amp Wall Plug required • 50 or 60 Hz Single Phase 100-120 Watt Machines: • Auto-switching 220v-240v • 10 Amp Draw • 15 Amp Wall Plug required • 50 or 60 Hz Single Phase 200 Watt Machines: • Auto-switching 220v-240v • 17 Amp Draw • 20 Amp Wall Plug required • 50 or 60 Hz Single Phase |
60-80 Watt Machines: • Auto-switching 110v-240v • 13 Amp Draw (110/120v) • 6.5 Amp Draw (220/240v) • 15 Amp Wall Plug required • 50 or 60 Hz Single Phase 100-120 Watt Machines: • Auto-switching 220v-240v • 10 Amp Draw • 15 Amp Wall Plug required • 50 or 60 Hz Single Phase 200 Watt Machines: • Auto-switching 220v-240v • 17 Amp Draw • 20 Amp Wall Plug required • 50 or 60 Hz Single Phase |
60-80 Watt Machines: • Auto-switching 110v-240v • 13 Amp Draw (110/120v) • 6.5 Amp Draw (220/240v) • 15 Amp Wall Plug required • 50 or 60 Hz Single Phase 100 Watt Machines: • Auto-switching 220v-240v • 10 Amp Draw • 15 Amp Wall Plug required • 50 or 60 Hz Single Phase 200 Watt Machines: • Auto-switching 220v-240v • 17 Amp Draw • 20 Amp Wall Plug required • 50 or 60 Hz Single Phase |
| Ventilation | 350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4″ (100 mm) diameter. | 350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4″ (100 mm) diameter. | Three total ports. Two upper exhaust ports, one lower vacuum table port. Total 735 CFM required. All ports 4″ (100 mm). |
| Class | Class 2 Laser Product – 1 mW CW Maximum 600-700 nm | ||
Dual Source Option: CO2 and Fiber
Are you looking for the material versatility of a CO2 laser in addition to the direct metal etching of a fiber laser? Add on the dual source option to your Fusion Pro by choosing both a CO2 laser and a fiber laser to work with a wider range of materials.
(Coming Soon)
3-Jaw Chuck
Rotary Attachment
With the 3-Jaw Chuck rotary, objects are clamped into the device’s 3-jaw chuck, allowing you to rotate cylindrical or oddly-shaped items in applications that demand more precise alignment.
Rim-Style
Rotary Attachment
The Rim-Style rotary attachment adds the ability to engrave bottles, glasses, flashlights, or any other cylindrical item. The rotary attachment is as easy to set up as placing your product on the rotary, raising or lowering the scissor lift to level the engraving area, and printing to the laser.
Task Plate
Engraving Table
The optional Task Plate for the Fusion Pro 24 and 36 offers you the flattest option for engraving pieces that require the most consistent engraving across a large area. These single panel tables are easily inserted and removed from the machine, and are ideal for engraving materials that are very sensitive to focus variation.
Note: The Task Plate is included with the Fusion Pro 48.

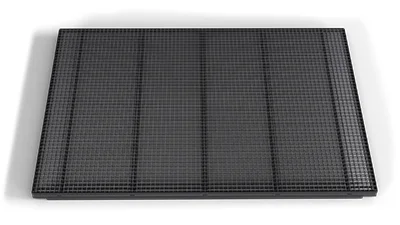

Vector Cutting Table (Grid-Style)
The optional grid-style vector cutting table is available for our Fusion Pro machines. Ideal for cutting applications, the vector grid limits how much of the surface area of your piece contacts the work table, reducing backside burning and providing greater air circulation while still accommodating smaller material stock.
Vector Pin Table
Raise and support your cutting materials for better edge quality. The Pin Table incorporates movable pins that can be placed anywhere along the table’s grid of one inch (25.4 mm) spaced holes. The movable pins also allow the user to raise and support the cutting material in locations where the laser will not be cutting, providing a means of eliminating backside reflection. The table also allows you to place pins to support parts that would normally fall out of the cutting pattern. A handy removable surface plate makes the task of cleaning up small parts easy without removing the Pin Table.
Vector Cutting Table (Slat-Style)
Designed for larger pieces of material, the optional slat-style vector table greatly reduces the points of contact between the material you are cutting and the work table, significantly reducing backside burning and providing optimal airflow for the removal of dust and debris.
Optional Lenses
4.0” Lens: Cutting Thicker Materials and Inside Deep Areas
The 4” lens produces a focused beam over a longer vertical distance, which makes it ideal when engraving within a recessed area of a product, such as inside a bowl or plate. The lens is also used for cutting through very thick materials.
PhotoLaser Plus Software
PhotoLaser Plus takes photo engraving with your Epilog Fusion Series laser to the next level by easily processing photos for engraving on all types of materials. Epilog Laser has partnered with CADLink to bring you the industry’s best photo processing software: PhotoLaser Plus. The easy-to-use software interface and powerful photo processing tools allow you to create the highest-quality photo engravings in the industry.
Material Compatibility
Quick guide for your Epilog Laser Machine
The Fusion Pro Laser Series combines industrial-grade performance with advanced features in three versatile formats: the compact Fusion Pro 24, the larger Fusion Pro 36, and the high-capacity Fusion Pro 48. Built on more than three decades of design and manufacturing expertise, the Fusion Pro Series delivers the speed, precision, and reliability businesses need to tackle demanding production environments with confidence.
| Material Category | CO2 Engraving | CO2 Cutting | Fiber Engraving |
|---|---|---|---|
| Woods & Fibers 6 materials |
✓ | ✓ | ✗ |
| Acrylics & Polymers 7 materials |
✓ | ✓ | ✗ |
| Textiles & Leather 3 materials |
✓ | ✓ | ✗ |
| Metals 8 materials |
✓ | ✗ | ✓ |
| Glass & Ceramics 4 materials |
✓ | ✗ | ✗ |
| Miscellaneous 2 materials |
✓ | ✓ | ✗ |
Wattage Requirements by Material Thickness
The power (in watts) you need varies by material thickness and type. Soft materials like fabric or paper require lower wattages for clean cuts. Dense materials like plywood or acrylic demand higher power to penetrate effectively without charring.
Do you have a material you would like us to test? Our Applications Team would be happy to assist you.
