LiDar, All-in-One.
Blickfeld: Lidar Sensors and quality software, all in one package
IDI Laser is proud to be an official distributor of Blickfeld LiDAR products. Blickfeld offers users a series of high-quality and state-of-the-art LiDAR sensors in order to bring to you an array of LiDAR solutions for a variety of applications.
Blickfeld LiDAR components are compact and functional, able to be integrated into a variety of LiDAR solutions, and designed to be unintrusive and easily installed.
Coupled with an intuitive, powerful web interface, Blickfeld products are the ultimate integration of hardware and software, and can be tailored to fit your specific needs.
Our Range Of Blickfeld Products

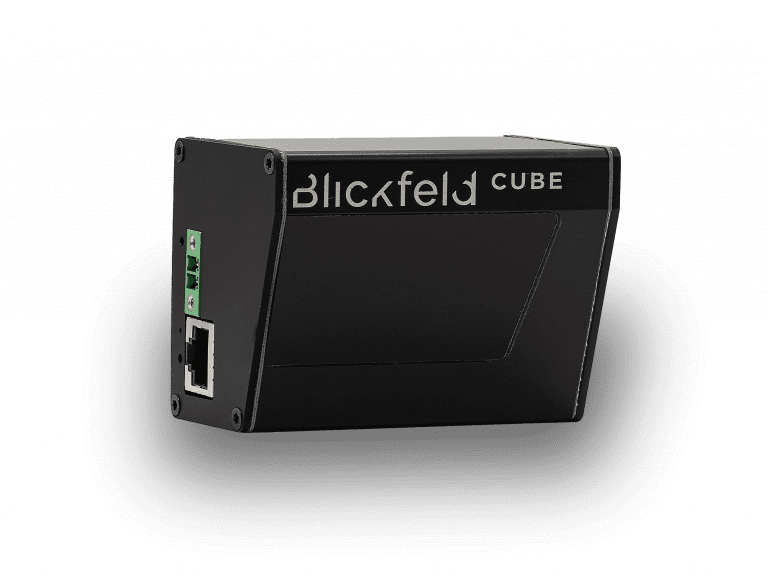

Blickfeld Cube 1
Compact Solid-State LiDAR Sensor
The Cube 1 is a fully integrated scanning LiDAR sensor in a small form factor. It comes with a point cloud interface and no additional adapter boxes are required for operation. Blickfeld’s patented MEMS-based LiDAR technology enables a field of view of 70° x 30° and a maximum detection range of 250 meters. The sensor’s field of view, number of scan lines, and frame rate can be flexibly configured via software, enabling a variety of application scenarios.
Spec Sheet

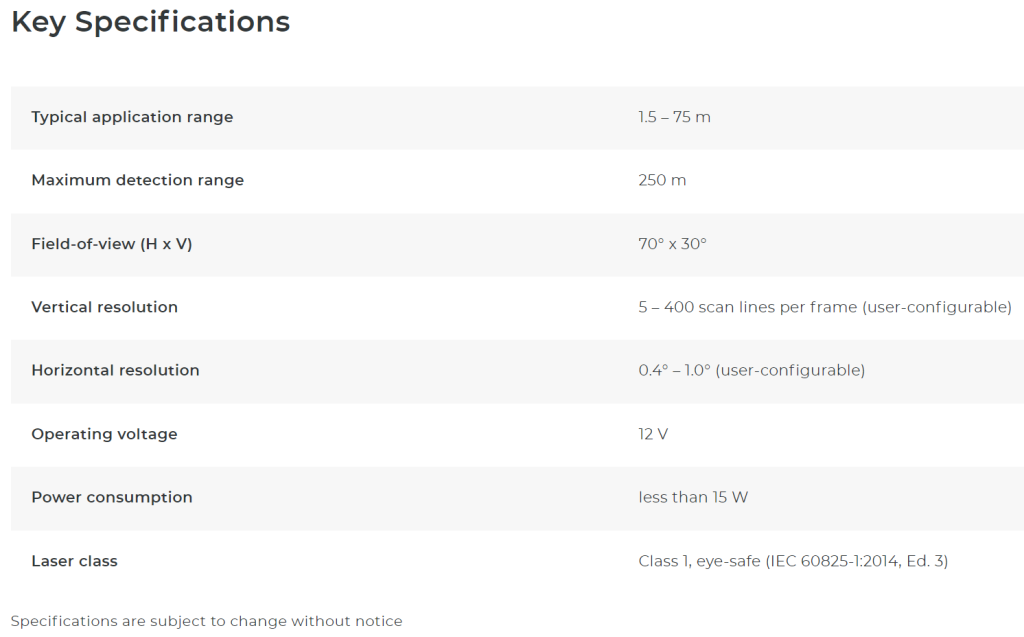

Key Specifications
| Typical application range | 1.5 – 75 m |
| Maximum detection range | 250 m |
| Field-of-view (H x V) | 70° x 30° |
| Vertical resolution | 5 – 400 scan lines per frame (user-configurable) |
| Horizontal resolution | 0.4° – 1.0° (user-configurable) |
| Operating voltage | 12 V |
| Power consumption | less than 15 W |
| Laser class | Class 1, eye-safe (IEC 60825-1:2014, Ed. 3) |
Specifications are subject to change without notice
Blickfeld Cube 1 Outdoor
Compact Solid-State LiDAR Sensor for Outdoor Applications
The Cube 1 Outdoor is a fully integrated scanning LiDAR sensor in a small form factor. The sensor is protected in accordance to IP65 against ingress of dust and jets of water from all directions. Power-over-Ethernet technology simplifies installation and maintenance, reduces the number of accessories required and thus the complexity of comprehensive LiDAR systems. Blickfeld’s patented MEMS-based LiDAR technology enables a field of view of 70° x 30° and a maximum detection range of 250 meters. The sensor’s field of view, number of scan lines, and frame rate can be flexibly configured via software, enabling a variety of application scenarios.
Spec Sheet

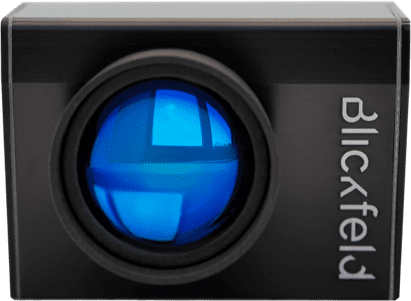

Blickfeld Cube Range 1
Long-Range, High-Accuracy LiDAR Sensor
The Cube Range 1 is made for extra-long-distance detection and offers high-precision 3D measurements. It features an adaptable field-of-view, a unique scan pattern for versatile usage in various industries, all in a compact and lightweight package. No additional adapter boxes are required for operation and the point cloud interface ensures easy handling and configuration. The associated recognition software makes the Cube Range 1 a smart solution for numerous applications.
Spec Sheet
