Dual-Head Substrate Laser Strip Marking system

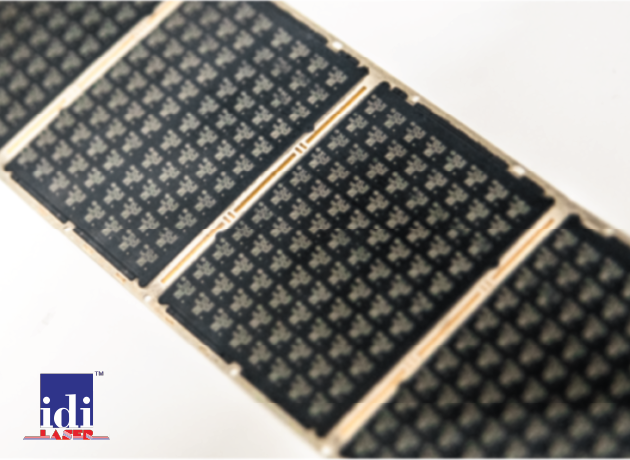

IDI Laser Services’ latest offering is a dual-head substrate laser strip marking system designed to mark Strip Lead frames.
Featuring fully automatic loading and unloading from either Slot Magazine Loader or Stacking tray, and integrated with a built-in CO-Axis VISION and high-speed transfer system, this handler is packed with features to ensure laser marking is done precisely with traceable mark for lead frames of different package types, such as QFN, LGA, TLA, BGA, and SMD.
Employing state-of-the-art technology and highly customisable to your needs, our dual-head marking solution is sure to fit any semiconductor manufacturing requirements.
-
• UNIQUE FEATURES:
Pre-mark clamping- reduces warpage with a mechanical jig nd vacuum suction
• VARIOUS CHOICES FOR LASER
IDI Laser Services is able to customise your machine with UV, Green, and Fiber laser heads for your machine.
• SMALL INDUSTRIAL FOOTPRINT
Our customised build can be as small as 1650mm (H) by 2400mm (W) by 1600mm (L).• CUSTOM SOFTWARE SUITE
Various customisable parameters, easy to pick up and use, fully configurable based on operations.
| Load/Unload System | Slot/Stack Magazine |
| Packages | QFN, SOT, PDIP, SOD, SOJ, VSOP, TSOP |
| Strips | Width: 30-100mm Length: 160-300mm |
| Laser Selection | IR, Green, UV |
| Laser Marking Area | 300mm x 150mm |
| VISION | Orientation, Pre/Post Inspection |
| Markable Content | 2D Data Matrix, Text, Logo |
| Dimensions | 2400mm (W) x 1600mm (L) x 1650mm (H) |
| Utilities | 230V AC, Single Phase, 32A CDA 6 – 8 bars |
| Operating Environment/ Operating Conditions | Ambient Temperature: ~23°C Relative Humidity: 70% RH Max Location with low shock/vibration/dust |
